1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven

Jiangsu Hualian Yiming Machinery Co.,Ltd.
Contact Now

1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven

Brand Name : HUALIAN PHARMD

Model Number : FD-CT-C-II

Certification : ISO,GMP

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 80

Delivery Time : 50 DAYS

Packaging Details : standard wooden case

Model No : FD-CT-C

Speed( r/min) : 1000

Power(Kw) : 0.9

Floor area(㎡) : 2300 * 2200 * 2000

Contact Now

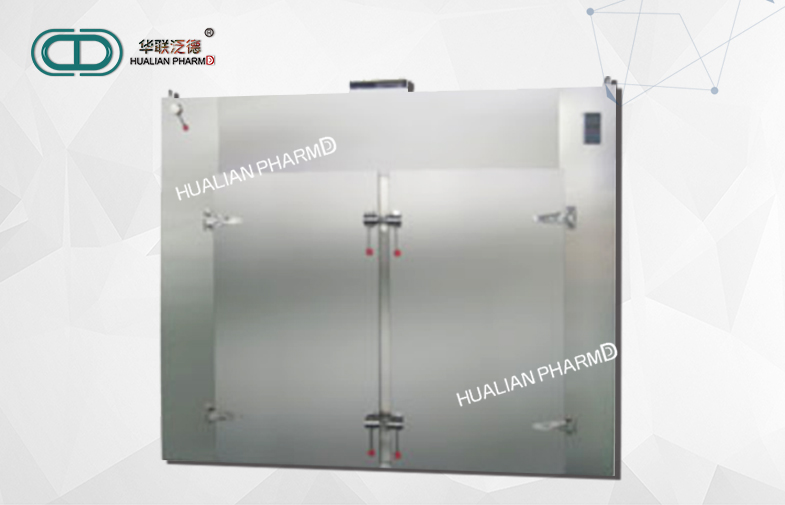

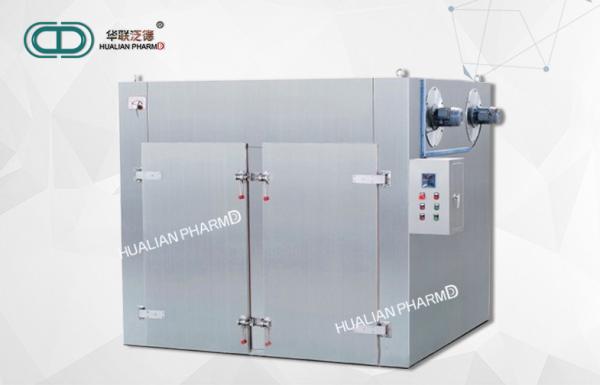

Ct-c Hot Air Circulation Drying Oven
Product introduction:
Ct-c series hot air circulating oven is equipped with low-noise high-temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which improves the thermal efficiency of the oven from 3-7% in the traditional oven to 35-45% at present, and the high thermal efficiency can reach 50%. The successful design o ct-c type hot air circulating oven makes the hot air circulating oven in China reach the advanced level at home and abroad. Save a lot of energy for our country, improved the economic benefit of the enterprise. In 1990, the state administration of medicine issued the industry standard, unified model RXH.
Application​:
It is suitable for heating and curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic producls, light industry, heavy industry and other industries. Such as raw material medicine, crude medicine, Chinese medicine decoction pieces, extract, powder, granule, granule, water pellet, packaging bottle, pigment dye, dehydrated vegetable, melon and fruit is dry, sausage, plastic resin, electrical components, baking paint and so on.


1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven
Technical characters:
1. Heating source steam, electricity. Far infrared, gas and electricity dual-use, for users to choose.
2. Service temperature: steam heating 50-130c, Max. 140
3. CSteam pressure 0.2-0.8mpa(2-8kg /cm2)
4. With electric heating calculated according to type 1 15kw, practical 5-8kw /h.
5. Use temperature is greater than 140C or less than 60C, should be noted when ordering.
6. Factory factory baked cars, baked disk size is uniform, can be exchanged.
Main Technical Parameter

ModelField Standard ModelTechnical data
EvaporationEfficientvolumeDryingSteam
areaareacapacity(kg/lot)consumption
(㎡)(㎡) (kg/h)
CTC-ORXH5-C61408
CT-C-IRXH-14-C14.12.612018
CTC-IARXH-7-C7.11.36010
CTC-IlRXH-27-C28.34.924036
CT-C-IIARXH-27A-C28.34.924036
CTC-IIRXH-41-C42.47.436060
CT-C-IIIARXH-41A-C42.47.436060
CT-C-IVRXH-54-C56.510.348080
CT-IRXH-14-B14.12.612020
CT-IIRXH-27-B28.34.924040
CT-IIIRXH-41-B42.47.436060
CT-IVRXH-54-B56.510.348080

ElectricFanFanOveall
heatingvolume(m³/h)power(kw)dimensions
power(kw) W xDxH
(mm)
CTC-ORXH5-C634500.451380x1200x2000
CT-C-IRXH-14-C1534500.452260x1200x2000
CTC-IARXH-7-C934500.451380x1200x2000
CTC-IlRXH-27-C3069000.45x22260x2200x2000
CT-C-IIARXH-27A-C3069000.45x24280x1200x2270
CTC-IIRXH-41-C45103500.45x32260x3200x2000
CT-C-IIIARXH-41A-C45103500.45x33240x2200x2000
CT-C-IVRXH-54-C60138000.45x44280x2200x2270
CT-IRXH-14-B1534501.12480x1200x2375
CT-IIRXH-27-B3052301.52480x2200x2438
CT-IIIRXH-41-B4598002.23430x2200x2620
CT-IVRXH-54-B601180034460x2200x2620

NumberModelField standard
modelEquippedDrying palletTemperatureTotal
drying carttobeequippedautomaticweight(kg)
(set)(рс)controlbox
1CTC-ORXH5-C116Availabie820
2CT-C-IRXH-14-C248Availabie1580
3CTC-IARXH-7-C224Availabie820
4CTC-IlRXH-27-C496Availabie1800
5CT-C-IIARXH-27A-C496Availabie1880
6CTC-IIRXH-41-C6144Availabie2100
7CT-C-IIIARXH-41A-C6144Availabie2210
8CT-C-IVRXH-54-C8192Availabie2800
9CT-IRXH-14-B248Availabie1220
10CT-IIRXH-27-B496Availabie1530
11CT-IIIRXH-41-B6144Availabie2110
12CT-IVRXH-54-B8192Availabie2300

Main technical parameters and related description:
1. A heating source of steam, far - infrared, electric steam dual-use, for users to choose.
2. Using temperature: steam heating 50-140 ° C, up to 150 C.
3. Electricity, far infrared temperature 50-500° C.
4. Equipped with automatic control system and computer control system for users to choose.
5. Common steam pressure: 0.02-0.8mpa (0.2-8kg/cm).
6. Electric heating, 15KW according to |, practical 5-8kw/h.
7. Special requirements shall be stated when ordering.
8. Non - standard oven price negotiable.
9. Please note when ordering if the operating temperature is greater than 140C or less than 60C.
10. Factory factory bake car, bake plate size is uniform, can be exchanged.
11. Baking tray size: 460x 640x45mm.
1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven
1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven
1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven
1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven
1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven
1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven
1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven
Schematic of installation​
1800 Kg Pharmaceutical Granulation Equipments / Hot Air Circulation Drying Oven
